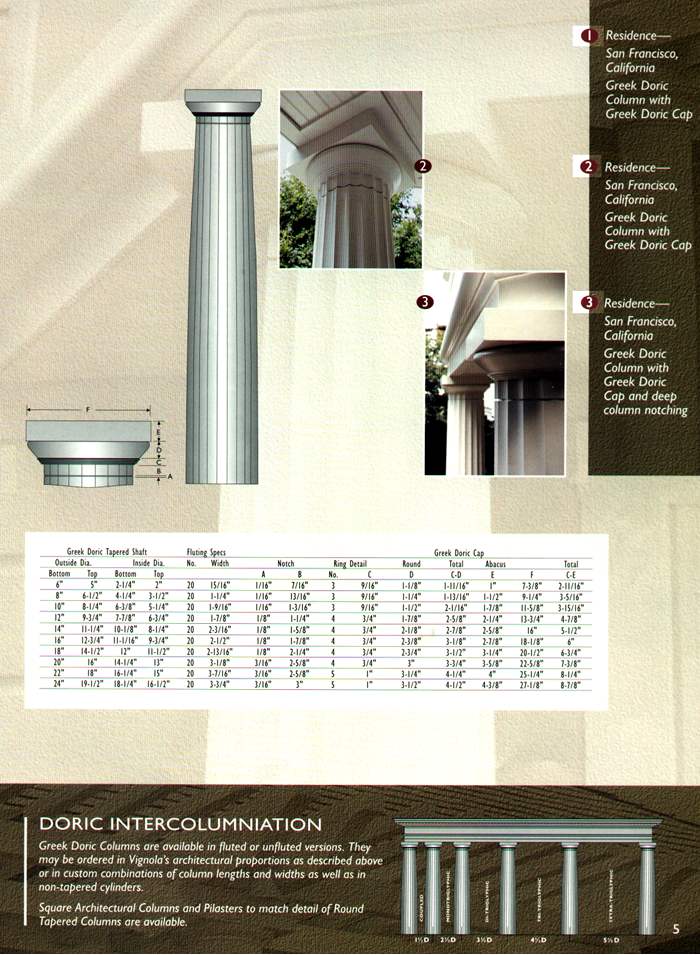

Greek Doric Tapered Shaft
Fluting Specs
Greek Doric Cap
Outside Dia.

Inside Dia.

No.

Width
Notch

Ring Detail
Round
Total
Abacus
Total
Bottom
Top
Bottom
Top


A
B
No.
C
D
C-D
E
F
C-E
6"
5"
2-1/4"
2"
20
15/16"
1/16"
7/16"
3
9/16"
1-1/8"
1-11/16"
1"
6-7/8"
2-11/16"
8"
6-1/2"
4-1/4"
3-1/2"
20
1-1/4"
1/16"
13/16"
3
9/16"
1-1/4"
1-13/16"
1-1/2"
9-1/4"
3-5/16"
10"
8-1/4"
6-3/8"
5-1/4"
20
1-9/16"
1/16"
1-3/16"
3
9/16"
1-1/2"
2-1/16"
1-7/8"
11-5/8"
3-15/16"
12"
9-3/4"
7-7/8"
6-3/4"
20
1-7/8"
1/8"
1-1/4"
4
3/4"
1-7/8"
2-5/8"
2-1/4"
13-3/4"
4-7/8"
14"
11-1/4"
10-1/8"
8-1/4"
20
2-3/16"
1/8"
1-5/8"
4
3/4"
2-1/8"
2-7/8"
2-5/8"
16"
5-1/2"
16"
12-3/4"
11-1/16"
9-3/4"
20
2-1/2"
1/8"
1-7/8"
4
3/4"
2-3/8"
3-1/8"
2-7/8"
18-1/8"
6"
18"
14-1/2"
12"
11-1/2"
20
2-13/16"
1/8"
2-1/4"
4
3/4"
2-3/4"
3-1/2"
3-1/4"
20-1/2"
6-3/4"
20"
16"
14-1/4"
13"
20
3-1/8"
3/16"
2-5/8"
4
3/4"
3"
3-3/4"
3-5/8"
22-5/8"
7-3/8"
22"
18"
16-1/4"
15"
20
3-7/16"
3/16"
2-5/8"
5
1"
3-1/4"
4-1/4"
4"
25-1/4"
8-1/4"
24"
19-1/2"
18-1/4"
16-1/2"
20
3-3/4"
3/16"
3"
5
1"
3-1/2"
4-1/2"
4-3/8"
27-1/8"
8-7/8"




Greek Doric Columns are available in fluted or unfluted versions. They may be ordered in classic architectural proportions as described above or in custom combinations of column lengths and widths as well as in non-tapered cylinders. Square Architectural Columns and Pilasters to match detail of Round Tapered Columns are available.
